Polylite™ ZC-891 Unsaturated Polyester Resin

Structures:Orthophthalic
Processes:BMC Molding Resin

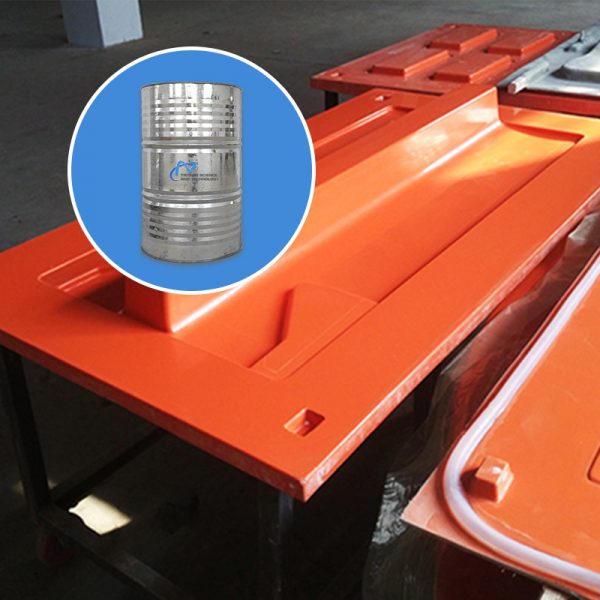

Application:It is suitable for FRP products and FRP molds with medium heat resistance requirements.

+86 18136701732
Info@tritiumupr.com

Product Details

Chemical/Physical Nature

ZC-891 resin is an o-phthalic unsaturated polyester resin with phthalic anhydride, maleic anhydride and standard diol as main raw materials, which has been dissolved in styrene cross-linking monomer and has medium viscosity and high reactivity.

Benefits and Application

ZC-891 resin is heat-resistant HM type, with good acid resistance and heat resistance, good strength and rigidity. It is suitable for FRP products and FRP molds with medium heat resistance requirements.

Liquid Resin Typical Properties

PropertyValueUnitTM
AppearanceLight yellow transparent viscous liquid––
Acid Value19-26mgKOH/gGB/T 2895-2008
Viscosity,25℃0.55-1.0Pa.sGB/T 7193-2008
Solid Content60-67%GB/T 7193-2008
Thermal Stability,80℃≥24hGB/T 7193-2008
Gelation time 25℃6-15minGB/T 7193-2008

Unfilled Castings Typical Properties

PropertyValueUnitTM
AppearanceCasting body has no defects––
Barcol hardness46–GB/T 3854-2005
HDT110℃GB/T 1634-2004
Break Elongation2MpaGB/T 2567-2008
Tensile Strength60MpaGB/T 2567-2008
Tensile Modulus3400MpaGB/T 2567-2008
Flexural Strength100MpaGB/T 2567-2008
Flexural Modulus3500MpaGB/T 2567-2008

FRP Typical Properties

PropertyValueUnitTM
Barcol hardness65–GB/T 3854-2005
Flexural Strength320MpaGB/T 1449-2005
Flexural Modulus15500MpaGB/T 1449-2005
Tensile Strength290MpaGB/T 1449-2005
Tensile Modulus14500MpaGB/T 1449-2005

Application Guidelines

1. ZC-891 resin contains wax, but does not contain accelerators and thixotropic additives.
2. For those with higher heat resistance requirements, it is recommended to choose Polylite isophthalic type ZC-991 resin. 3. When choosing heat-resistant and chemical-resistant anticorrosive resins, the actual medium and temperature of the product should be used. The appropriate resin should be selected according to the company’s “Heat-resistant and Chemical-resistant Medium Use Inquiry Table” and confirmed through tests. 4. Post-curing of heat-resistant and corrosion-resistant FRP products is particularly important. The products should be used after they are fully cured.

Package

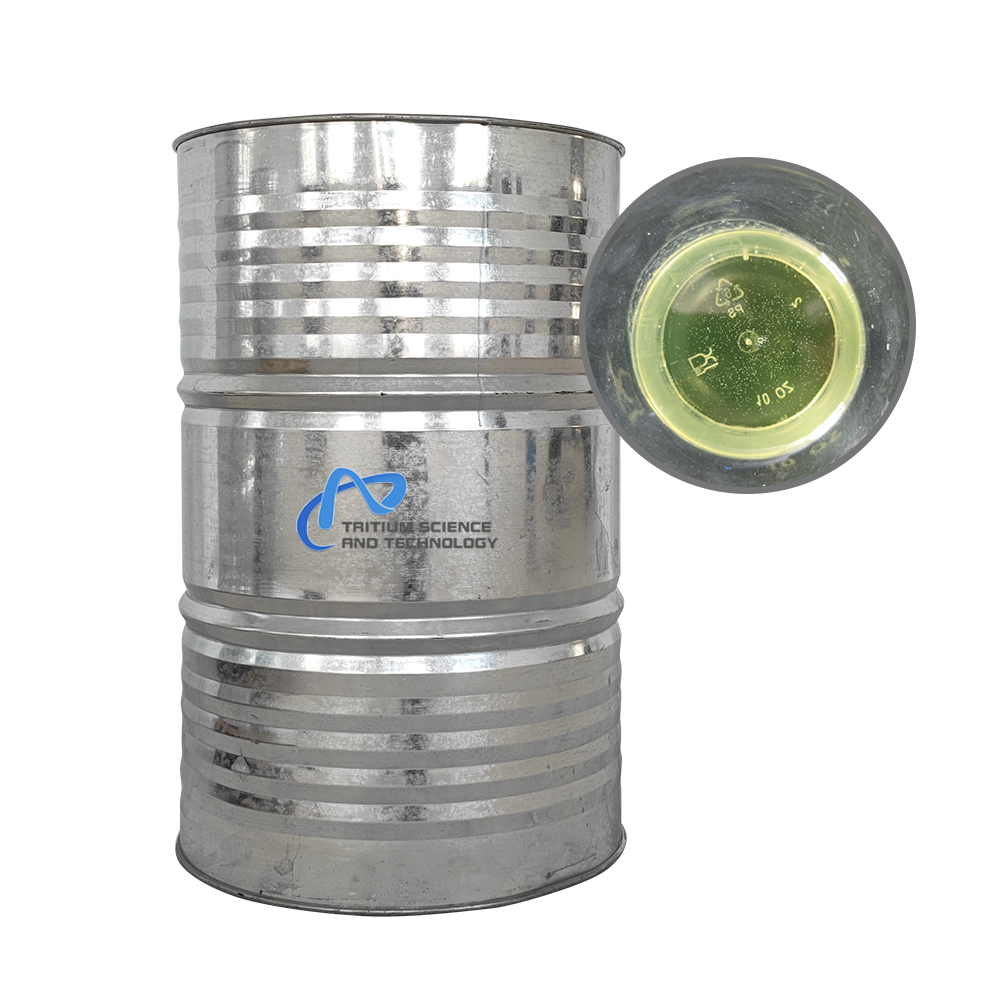

Net weight 220 kilograms, metal drum.Please contact us.
