We are the resin manufacturer you need!
Structures:Orthophthalic
Processes:Vacuum Infusion/RTM Resin
Application:t is suitable for medium and large FRP products in RTM/vacuum infusion processes.
ZC-5639P-1 resin is an orthophthalic pre-promoted unsaturated polyester resin made from phthalic anhydride, maleic anhydride and standard diols. It has low viscosity and medium reactivity.
ZC-5639P-1 resin has stable heat release, fast post-curing, small shrinkage, high strength, heat and water resistance, excellent mechanical properties, good glass fiber wettability, excellent injection performance, and can be molded into thicker products in one time. It is suitable for medium and large FRP products in RTM/vacuum infusion processes. It has been certified by China Classification Society (CCS) and can be used in shipbuilding. Certificate number: NJ14W00014.
| Property | Value | Unit | TM |
| Appearance | Purple transparent viscous liquid | – | – |
| Acid Value | 17-26 | mgKOH/g | GB/T 2895-2008 |
| Viscosity，25℃ | 0.12-0.22 | Pa.s | GB/T 7193-2008 |
| Solid Content | 49-57 | % | GB/T 7193-2008 |
| Thermal Stability,80℃ | ≥24 | h | GB/T 7193-2008 |
| Gelation time 25℃ | 20-65 | min | GB/T 7193-2008 |
| Property | Value | Unit | TM |
| Appearance | The casting body is defect free | – | – |
| Barcol hardness | 42 | – | GB/T 3854-2005 |
| HDT | 80 | ℃ | GB/T 1634-2004 |
| Break Elongation | 2.5 | Mpa | GB/T 2567-2008 |
| Tensile Strength | 70 | Mpa | GB/T 2567-2008 |
| Tensile Modulus | 3500 | Mpa | GB/T 2567-2008 |
| Flexural Strength | 120 | Mpa | GB/T 2567-2008 |
| Flexural Modulus | 3600 | Mpa | GB/T 2567-2008 |
| Property | Value | Unit | TM |
| Barcol hardness | 66 | – | GB/T 3584-2005 |
| Flexural strength | 310 | Mpa | GB/T 1449-2005 |
| Break Elongation | 18000 | Mpa | GB/T 1449-2005 |
| Tensile Strength | 330 | Mpa | GB/T 1447-2005 |
| Tensile Modulus | 17000 | Mpa | GB/T 1447-2005 |
1. ZC-5639P-1 resin contains accelerator, but does not contain wax and thixotropic additive.
2. In view of the differences in size and thickness of products in RTM/vacuum infusion and other processes, appropriate gelation time and exothermic peak should be selected to meet process requirements. If necessary, production indicators can be specified.

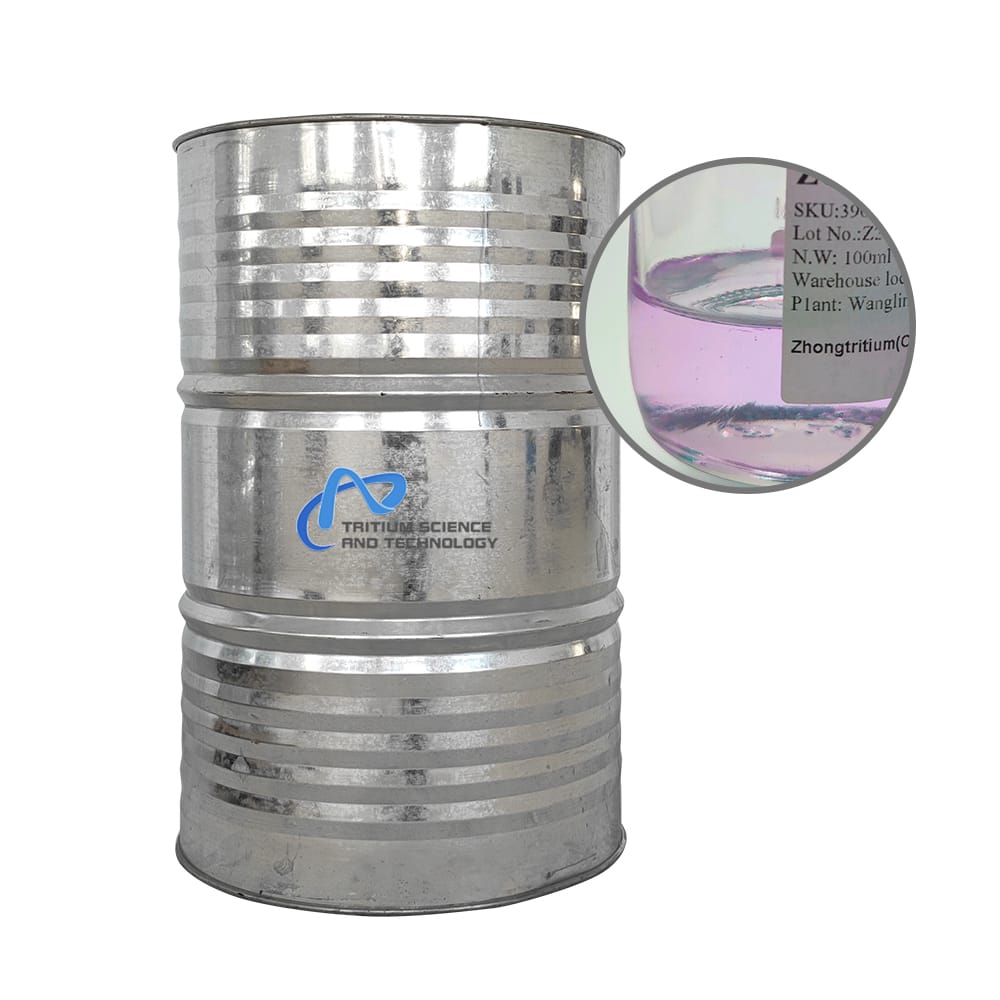

Net weight 220 kilograms, metal drum.Please contact us.
