Structures:Orthophthalic
Processes:Vacuum Infusion/RTM Resin
Application:It is suitable for small and medium-sized FRP products in RTM/vacuum infusion and other processes.
ZC-2059P resin is an orthophthalic pre-accelerated unsaturated polyester resin based on phthalic anhydride, maleic anhydride and standard diols. It has low viscosity and medium reactivity.
ZC-2059P resin has low exothermic peak, small shrinkage, high strength, fast post-curing, heat and water resistance, excellent mechanical properties, good glass fiber wettability, and excellent injection performance. It is suitable for small and medium-sized FRP products in RTM/vacuum infusion and other processes.
| Property | Value | Unit | TM |

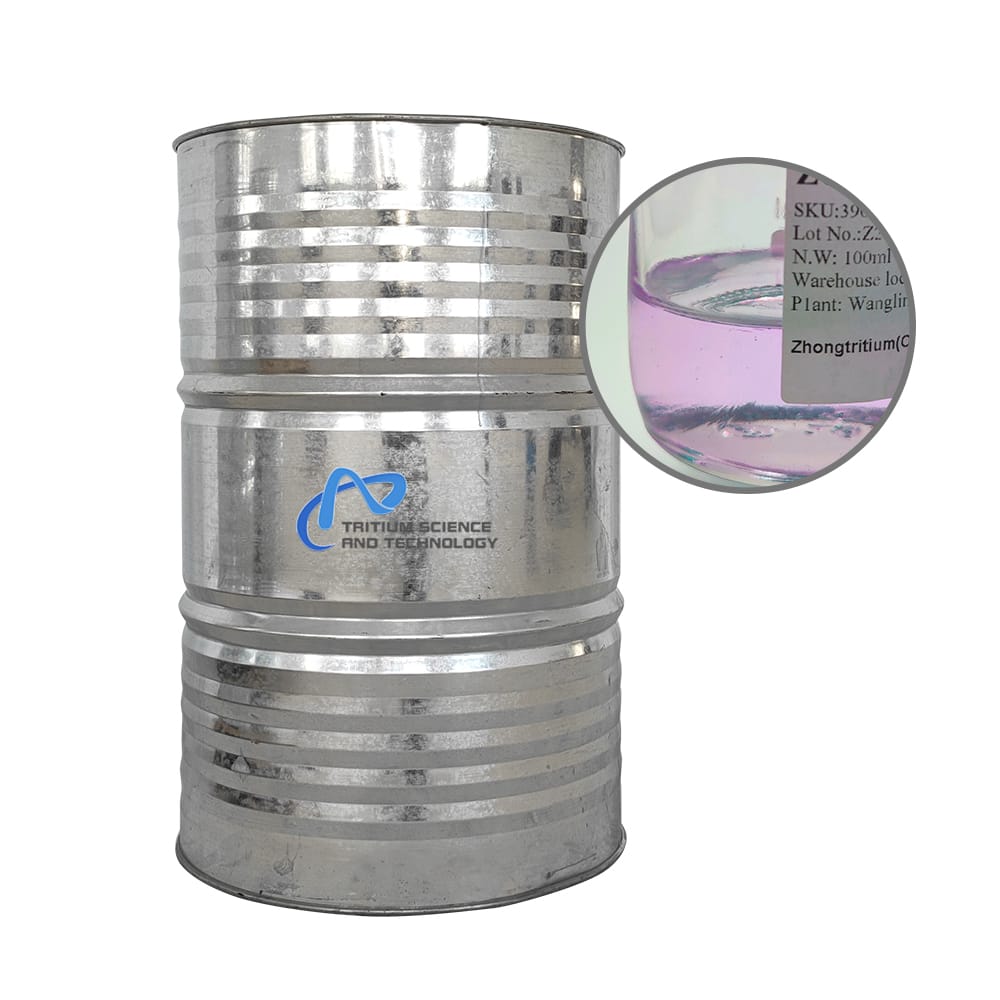

| Appearance | Purple transparent viscous liquid | – | – |
| Acid Value | 17-24 | mgKOH/g | GB/T 2895-2008 |
| Viscosity，25℃ | 0.12-0.17 | Pa.s | GB/T 7193-2008 |
| Solid Content | 49-55 | % | GB/T 7193-2008 |
| Thermal Stability,80℃ | ≥24 | h | GB/T 7193-2008 |
| Gelation time 25℃ | 20-25 | min | GB/T 7193-2008 |
| Property | Value | Unit | TM |
| Appearance | The casting body is defect free | – | – |
| Barcol hardness | 42 | – | GB/T 3854-2005 |
| HDT | 80 | ℃ | GB/T 1634-2004 |
| Break Elongation | 2.5 | Mpa | GB/T 2567-2008 |
| Tensile Strength | 70 | Mpa | GB/T 2567-2008 |
| Tensile Modulus | 3500 | Mpa | GB/T 2567-2008 |
| Flexural Strength | 120 | Mpa | GB/T 2567-2008 |
| Flexural Modulus | 3600 | Mpa | GB/T 2567-2008 |
1. ZC-2059P resin contains accelerator, but does not contain wax and thixotropic additive.
2. ZC-2059P resin is suitable for RTM/vacuum infusion process to produce small and medium-sized products; 1059P resin is recommended for medium and large-sized products.
3. In view of the size and thickness differences of products in RTM/vacuum infusion and other processes, the appropriate gelation time and exothermic peak should be selected to meet the process requirements. If necessary, the production indicators can be specified.

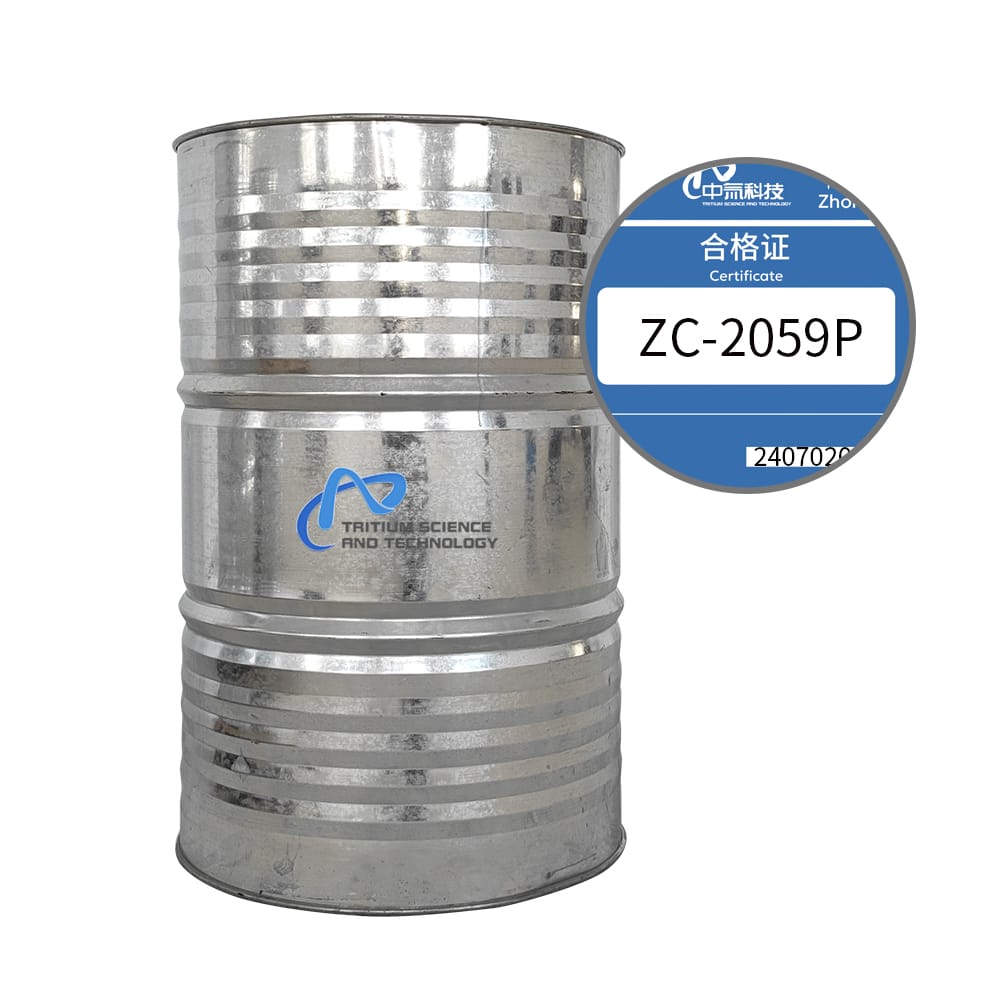

Net weight 220 kilograms, metal drum.Please contact us.
