We are the resin manufacturer you need!
Structures:Isophthalic
Processes:Hand lay-up
Application:Suitable for various high heat-resistant FRP products and FRP molds.

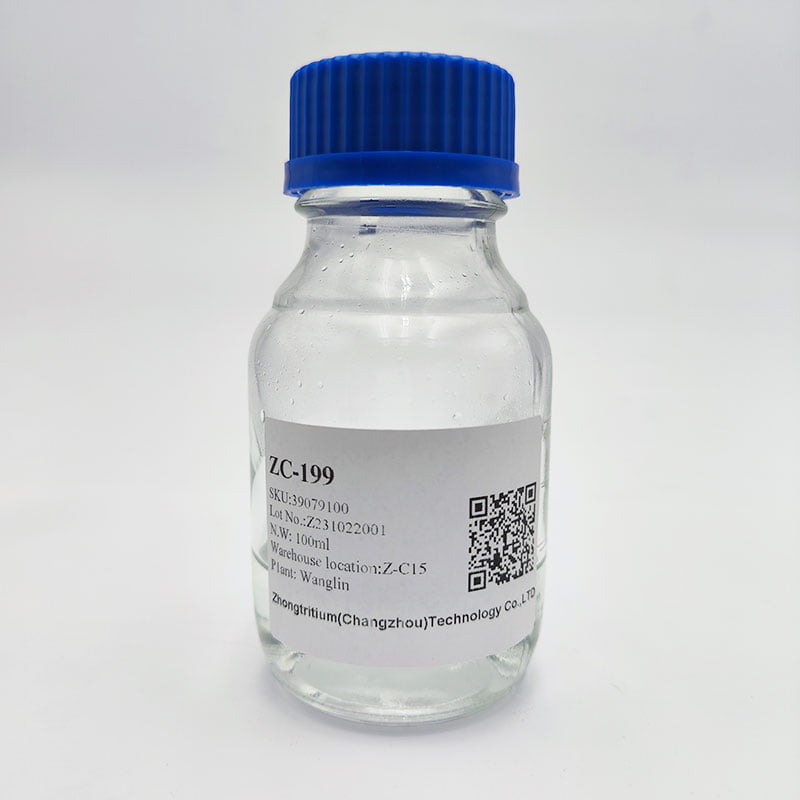

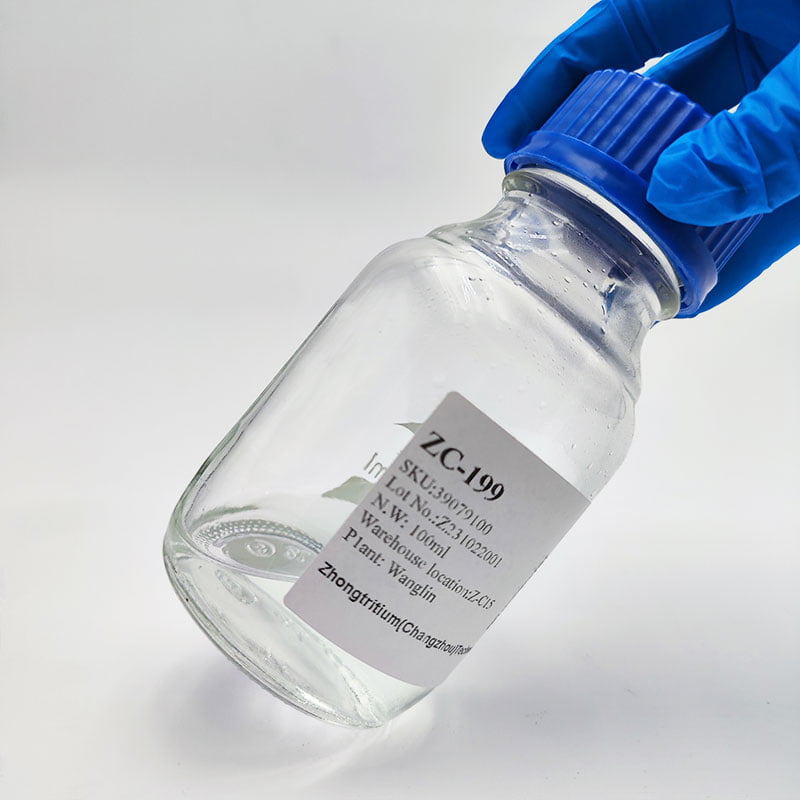

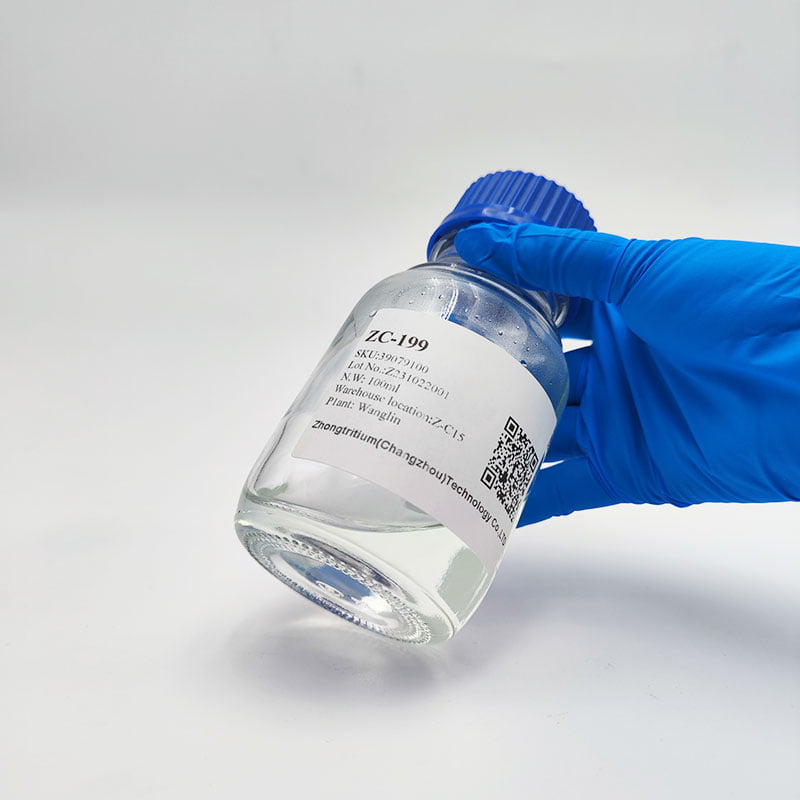

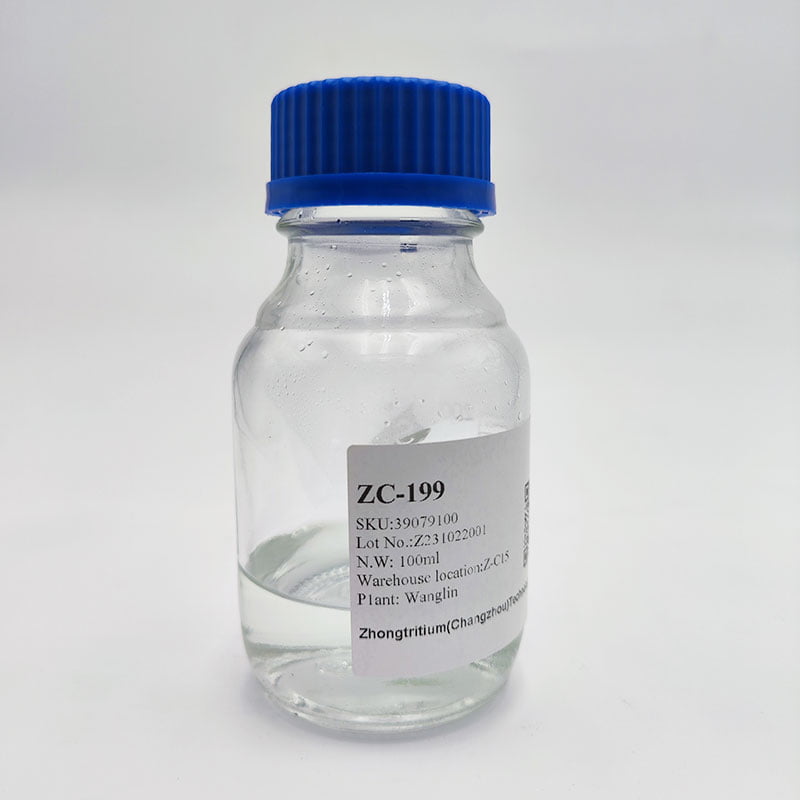

ZC-199 Resin is an isophthalicunsaturated polyester resin with isophthalic acid, fumaric acid and standard glycol as raw materials.Dissolved in styrene cross-linking monomer with medium viscosity and higher reactivity.
ZC-199 resin is a heat-resistant HE type with good acid resistance,high heat resistance,good strength and rigidity. Suitable for various high heat-resistant FRP products and FRP molds.
| Property | Value | Unit | TM |
| Appearance | Yellow transparent viscous liquid | – | – |
| Acid Value | 21-27 | mgKOH/g | GB/T 2895-2008 |
| Viscosity，25℃ | 0.35-0.65 | Pa.s | GB/T 7193-2008 |
| Solid Content | 58-64 | % | GB/T 7193-2008 |
| Thermal Stability,80℃ | ≥24 | h | GB/T 7193-2008 |
| Gel time | 10-16 | min | GB/T 7193-2008 |
| Property | Value | Unit | TM |
| Appearance | Cast body without defects | – | – |
| Barcol Hardness | 46 | – | GB/T 3854-2005 |
| HDT | 120 | ℃ | GB/T 1634-2004 |
| Break Elongation | 1.8 | Mpa | GB/T 2567-2008 |
| Tensile Strength | 55 | Mpa | GB/T 2567-2008 |
| Tensile Modulus | 3500 | Mpa | GB/T 2567-2008 |
| Flexural Strength | 90 | Mpa | GB/T 2567-2008 |
| Flexural Modulus | 3600 | Mpa | GB/T 2567-2008 |
| Property | Value | Unit | TM |
| Barcol Hardness | 67 | – | GB/T 3854-2005 |
| Tensile Strength | 300 | Mpa | GB/T 1447-2005 |
| Tensile Modulus | 16000 | Mpa | GB/T 1447-2005 |
| Flexural Strength | 3200 | Mpa | GB/T 1449-2005 |
| Flexural Modulus | 17000 | Mpa | GB/T 1449-2005 |
1. ZC-199 resin contains wax and does not contain accelerators and thixotropic additives.
2. When selecting heat-resistant and chemical-resistant anti-corrosion resin, the appropriate resin should be selected based on the actual medium and temperature of the product, and the company’s “Heat-resistant and chemical-resistant medium usage inquiry form” and confirmed through tests.
3. Post-curing of heat-resistant and corrosion-resistant FRP products is particularly important, and the products should be used after they are fully cured.
ZC-199 Resin packaging: net weight 200 kg, metal drum. Special packaging requirements please
Negotiable.
