Structures: Terephthalic Resin
Processes: General Purpose Resin
Application:Suitable for acrylic/ABS panel adhesive and reinforcement.
ZC-8222PT unsaturated polyester resin derived from the chemical reaction of Phthalic anhydride, maleic anhydride and standard diol.
Promoted ，Thixotropic ，Wax free，Low viscosity，Medium reactivity，High heat resistance property，Good waterproof property，Low exothermic peak，Good cohesiveness with acrylic/ABS panel，Good impregnation with fiberglass, not easily flow when operation Suitable for hand lamination and spray up process, used for acrylic/ABS panel adhesive and reinforcement.
| Property | Value | Unit | TM |
| Appearance | Red turbidity Viscous liquid | – | – |
| Acid Value | 26-32 | mgKOH/g | GB/T 2895-2008 |
| Viscosity，25℃ | 0.17-0.25 | Pa.s | GB/T 7193-2008 |
| Solid Content | 53-61 | % | GB/T 7193-2008 |
| Thermal Stability,80℃ | ≥24 | h | GB/T 7193-2008 |
| Gelation time,25℃ | 15-25 | min | GB/T 7193-2008 |
| Property | Value | Unit | TM |
| Appearance | Casting body no fault | – | – |
| Barcol Hardness | 40 | – | GB/T 3854-2005 |
| HDT | 60 | ℃ | GB/T 1634-2004 |
| Break elongation | 1.8 | Mpa | GB/T 2567-2008 |
| Tensile Strength | 50 | Mpa | GB/T 2567-2008 |
| Tensile Modulus | 3600 | Mpa | GB/T 2567-2008 |
| Flexural Strength | 80 | Mpa | GB/T 2567-2008 |
| Flexural Modulus | 3600 | Mpa | GB/T 2567-2008 |
ZC-8222PT resin contains thixotropic additives and accelerators，no wax thixotropic resin storage process thixotropic agent will gradually precipitate It should be thoroughly mixed.Due to the composition of acrylic /ABS sheet is differentAdhesion tests should be carried out before use to ensure its suitability.

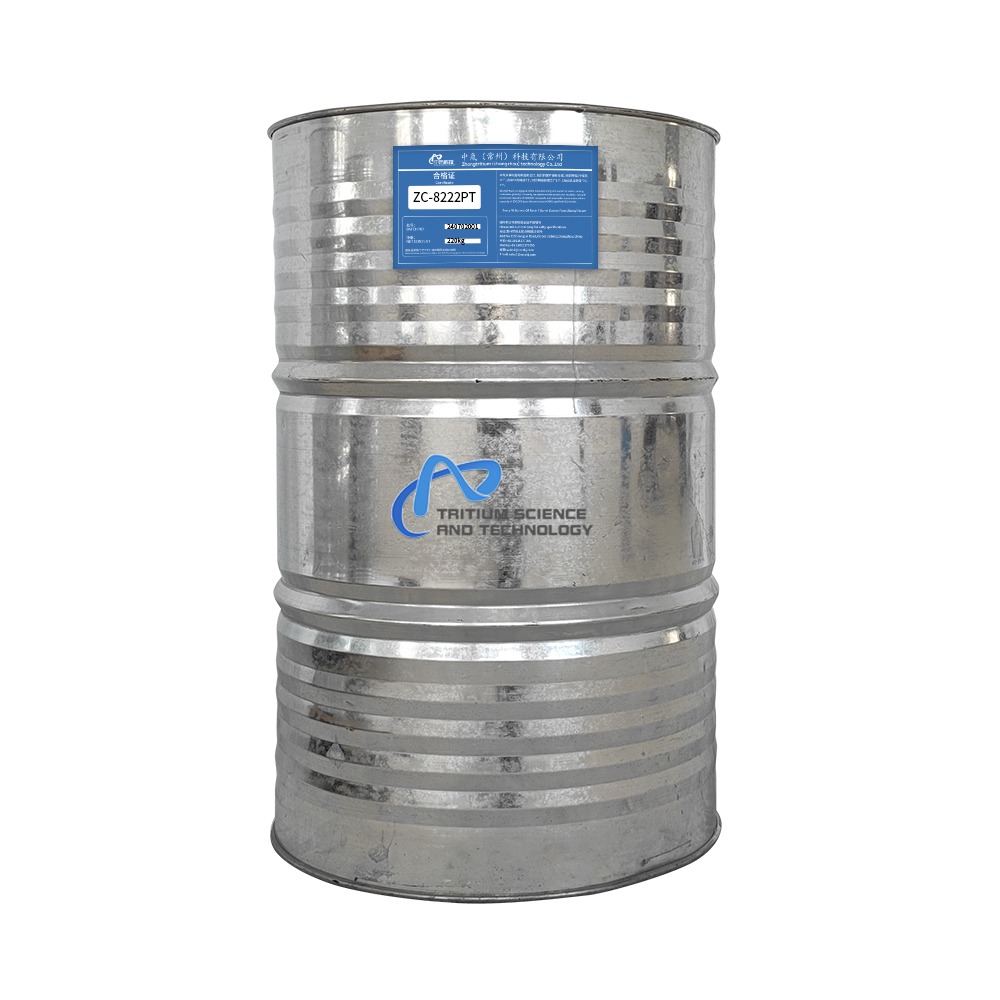

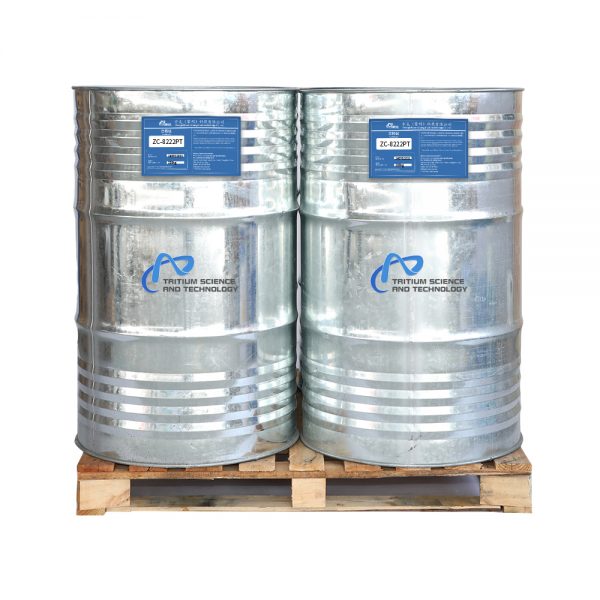

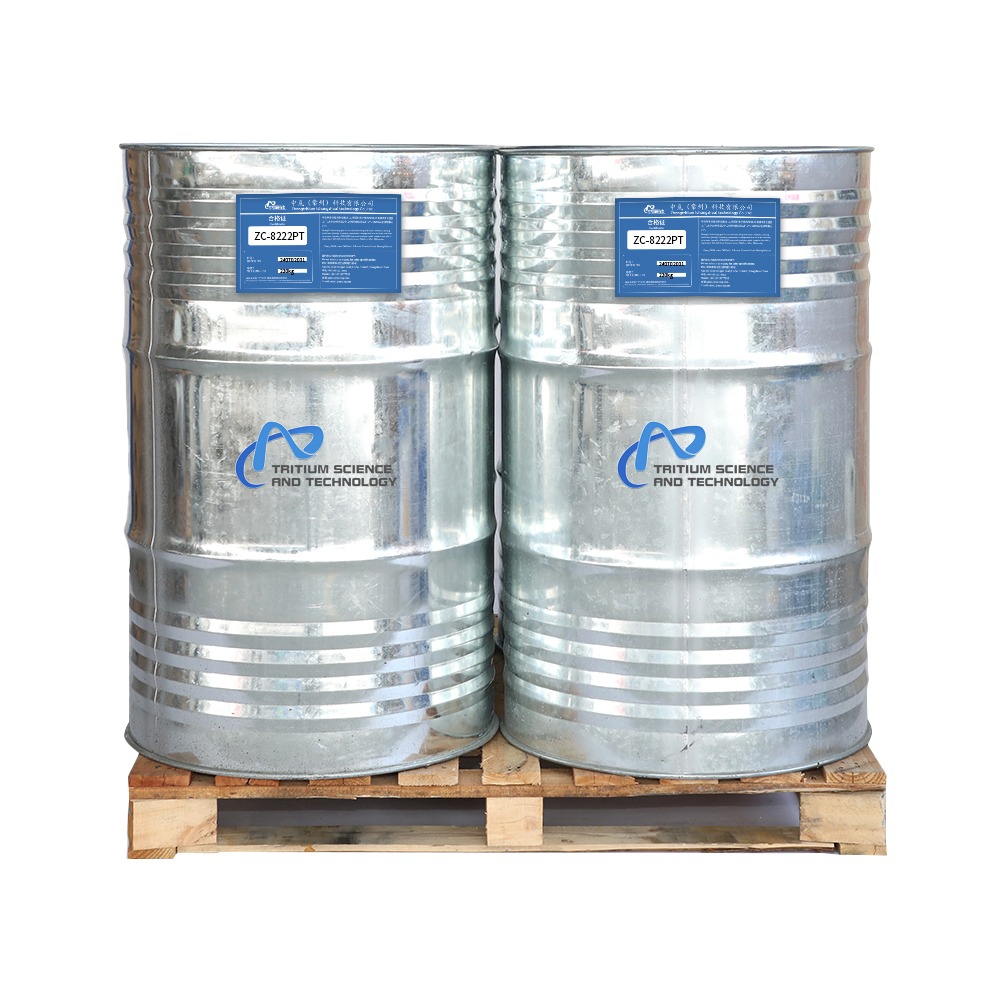

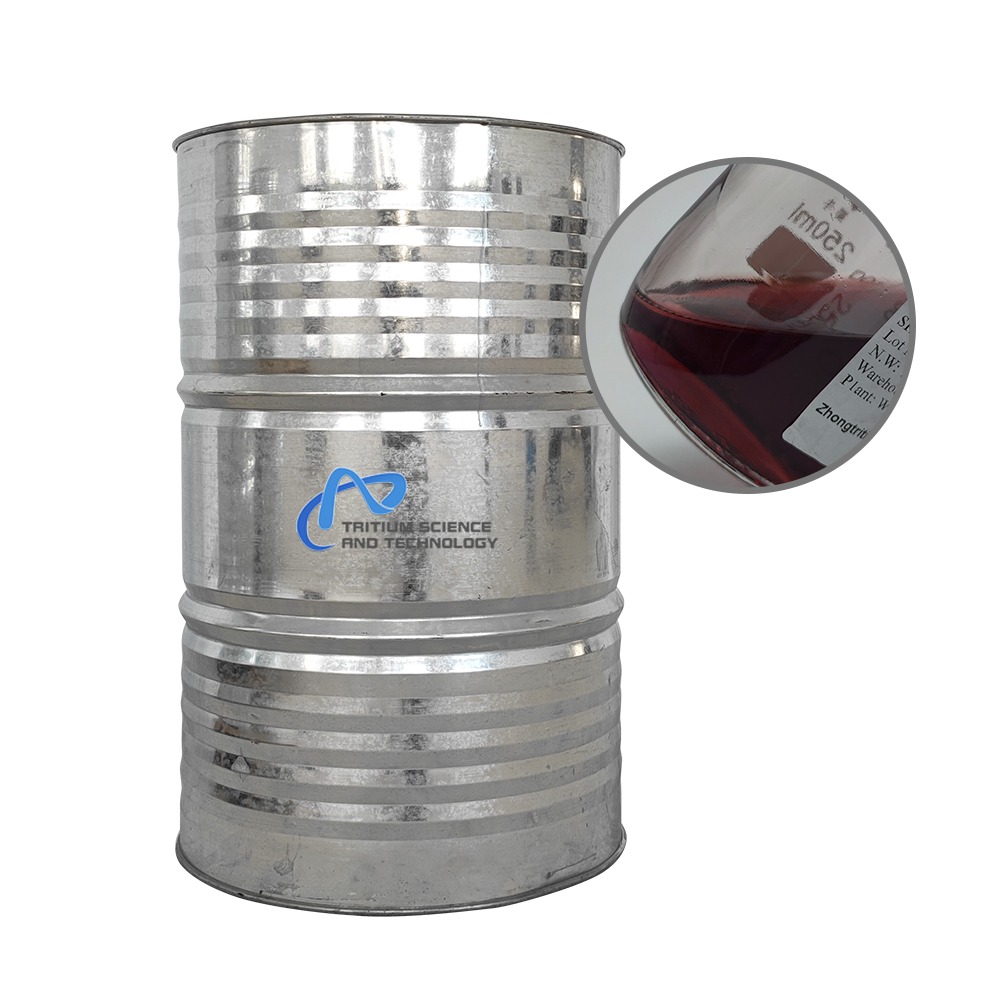

Net weight 220 kg, metal barrel.Please contact us.
