We are the resin manufacturer you need!
Structures:Orthophthalic Resin, Orthophthalic NPG Resin
Processes:BMC Molding Resin, Casting Resin, Filament Winding Resin, Pultrusion Resin,SMC Molding Resin
Application:Suitable for SMC/BMC products.
ZC-6161C is a pentaerythritol unsaturated polyester resin with medium viscosity, high reactivity,good heat resistance, impact resistance, and excellent electrical properties, suitable for SMC/BMC products.
ZC-6161C resin is specially designed for SMC/BMC production processes. It is widely used inautomotive, sports equipment, electrical, and construction industries. ZC-6161C has stablethickening performance, and when combined with low-shrinkage, low-profile additives such as ZC-4183C and ZC-2983C, it can be formulated into standard low-shrinkage SMC/BMC.
| Property | Value | Unit | TM |
| Appearance | Light yellow and transparent | – | – |
| Acid value | 19-25 | mgKOH/g | GB/T 2895-2008 |
| Viscosity，25℃ | 1200-1600 | mPa.s | GB/T 7193-2008 |
| Solid content | 63-68 | % | GB/T 7193-2008 |
| Property | Value | Unit | TM |
| Appearance | Light yellow and transparent | – | – |
| HDT | 110 | ℃ | GB/T 1634-2004 |
| Break elongation | 3.5 | % | GB/T 2567-2008 |
| Tensile strength | 70 | Mpa | GB/T 2567-2008 |
| Tensile modulus/td> | 3000 | Mpa | GB/T 2567-2008 |
| Flexural strength/td> | 100 | Mpa | GB/T 2567-2008 |
| Flexural modulus/td> | 3400 | Mpa | GB/T 2567-2008 |
ZC-6161C is typically used in conjunction with ZC-4183C for the production of low-shrinkage moldedplastics. Normally, the ratio of ZC-6161C to ZC-4183C is 70:30,although adjustments can be madeaccording to specific requirements. Depending on the final product’s dimensional demands, 300ppm to 600ppm of p-benzoquinone can be added to the formulation(calculated based on the total amount ofresin and low-shrinkage additive).

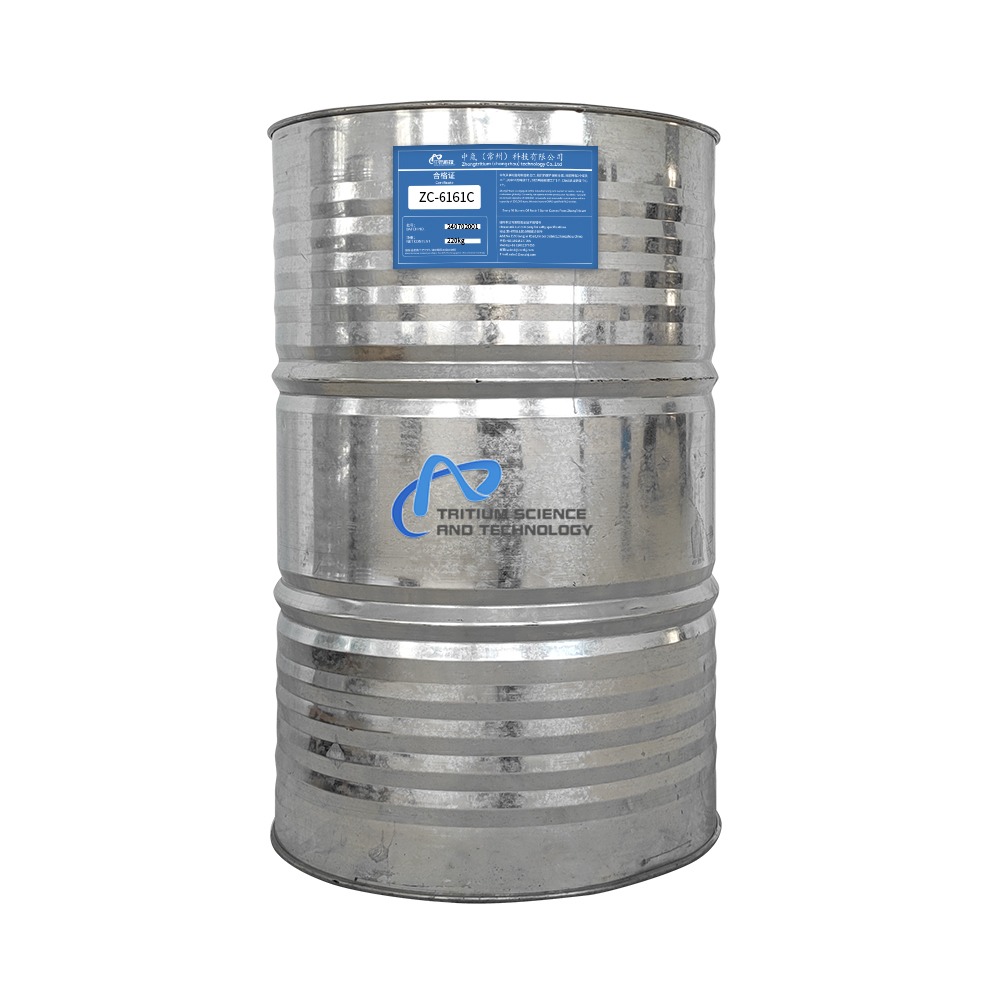

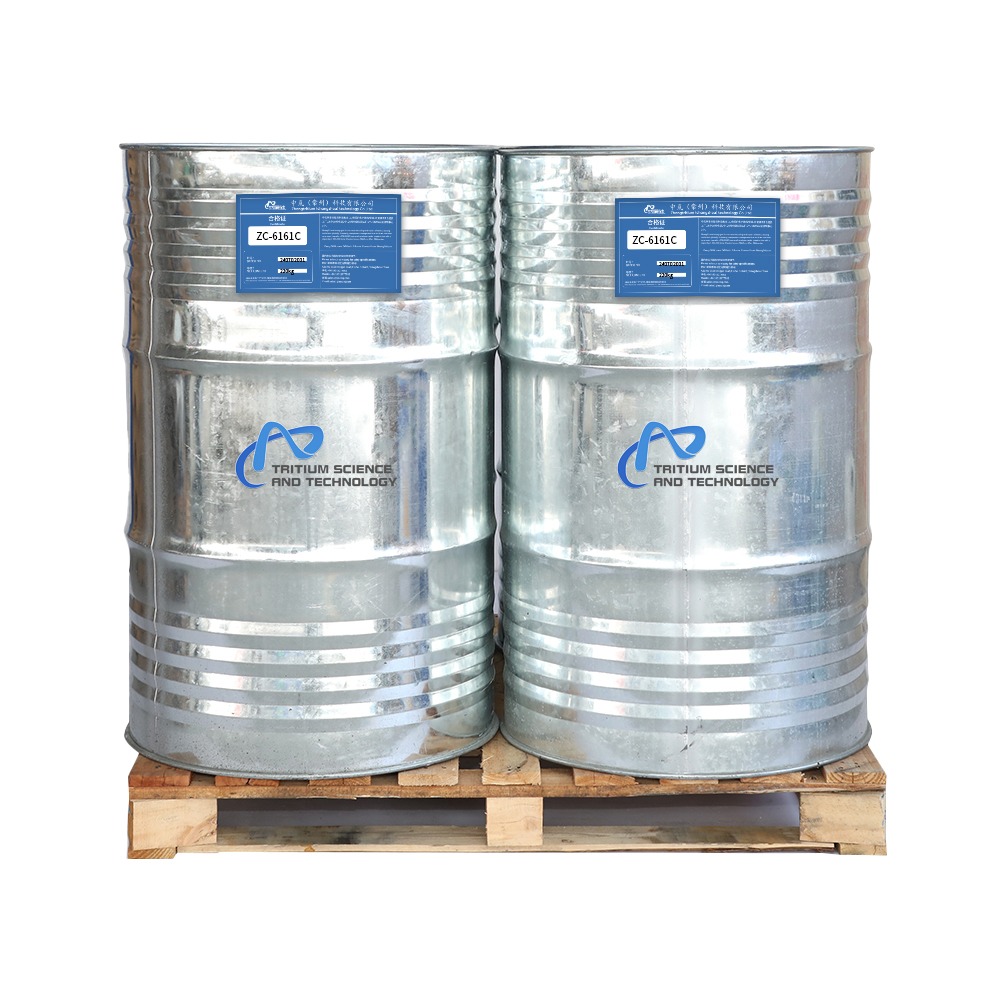

Net weight 220 kg, metal barrel.Special packaging requirements please Negotiable.Please contact us.
