Structures:DCPD
Processes:Hand lay-up
Application: Suitable for ordinary fiberglass products, as well as repairing and strengthening stone materials.
ZC-108 resin is an unsaturated polyester resin with phthalic anhydride, maleic anhydride and standard diols as the main raw materials. It has been dissolved in crosslinked monomers such as styrene and has medium viscosity and medium reactivity.
ZC-108 resin curing fast, easy to release mold, with good mechanical properties of FRP, the product is easy to repair, suitable for models and other ordinary thin FRP products.
| Property | Value | Unit | TM |

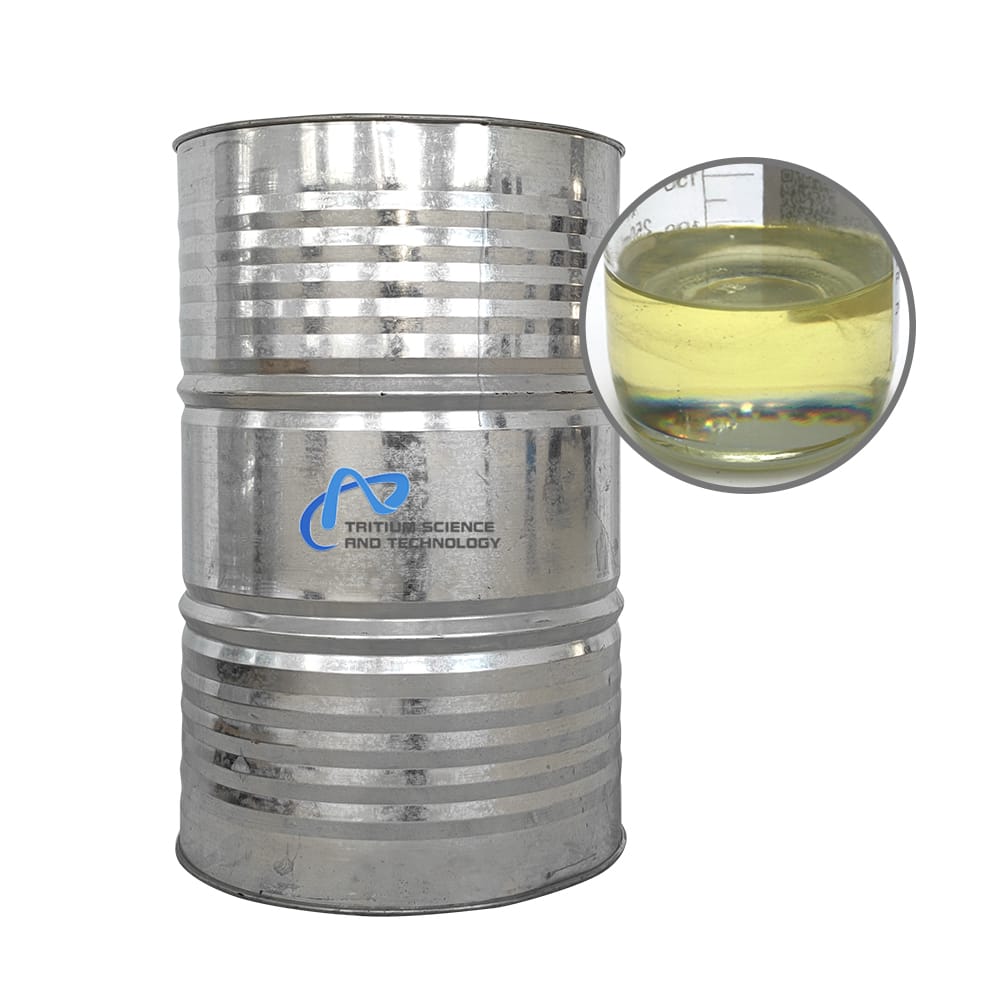

| Appearance | Light yellow transparent viscous liquid | – | – |
| Acid Value | 23-29 | mgKOH/g | GB/T 2895-2008 |
| Viscosity，25℃ | 0.25-0.45 | Pa.s | GB/T 7193-2008 |
| Solid Content | 60-66 | % | GB/T 7193-2008 |
| Thermal Stability,80℃ | ≥24 | h | GB/T 7193-2008 |
| Gelation time,25℃ | 6-18 | min | GB/T 7193-2008 |
| Property | Value | Unit | TM |
| Appearance | The casting body is free from defects | – | – |
| Babbitt Hardness | 42 | – | GB/T 3854-2005 |
| HDT | 70 | ℃ | GB/T 1634-2004 |
| Breake elongation | 3 | % | GB/T 2567-2008 |
| Tensile Strength | 60 | Mpa | GB/T 2567-2008 |
| Tensile modulus | 2800 | Mpa | GB/T 2567-2008 |
| Flexural strength | 100 | Mpa | GB/T 2567-2008 |
| Flexural modulus | 3000 | Mpa | GB/T 2567-2008 |
| Property | Value | Unit | TM |
| Barcol Hardness | 34 | – | GB/T 3584-2005 |
| Flexural strength | 300 | Mpa | GB/T 1449-2005 |
| Flexural modulus | 16500 | Mpa | GB/T 1449-2005 |
| Tensile strength | 300 | Mpa | GB/T 1447-2005 |
| Tensile modulus | 15500 | Mpa | GB/T 1447-2005 |
ZC-108 resin contains wax and is free of accelerators and thixotropic AIDS.

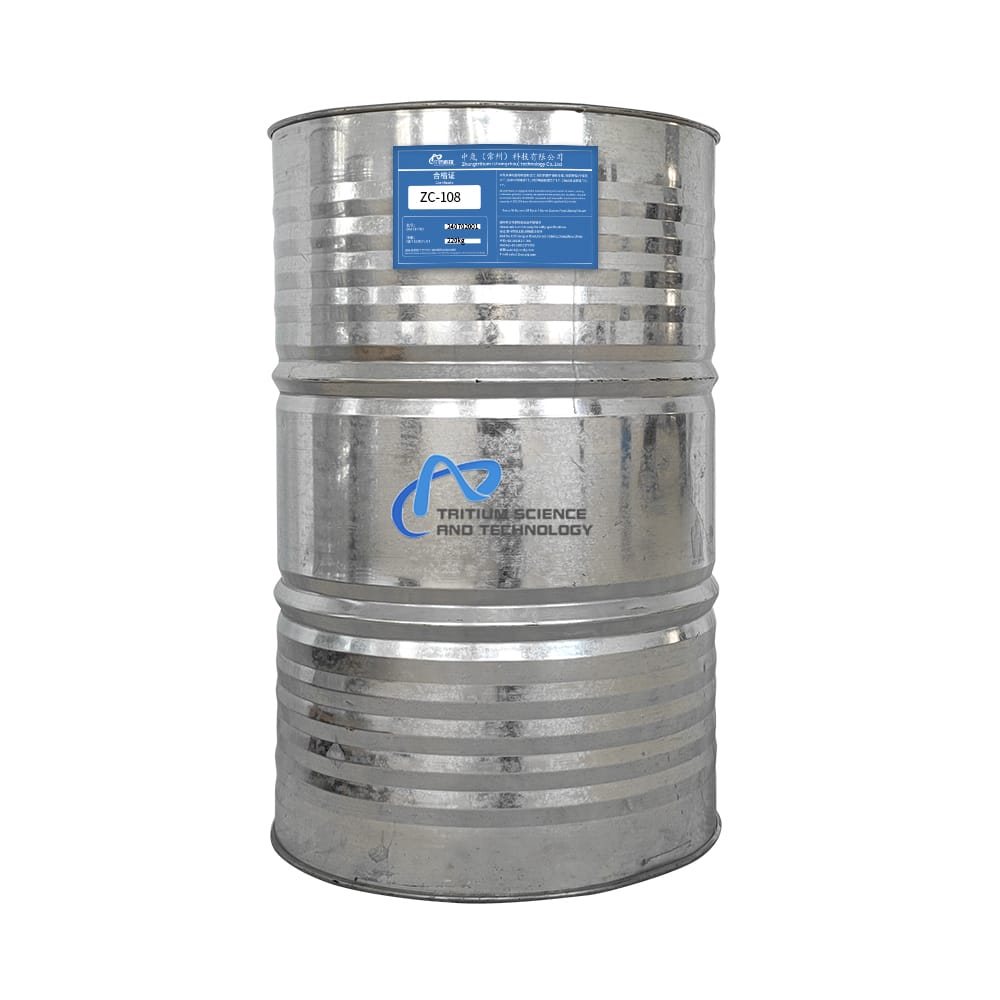

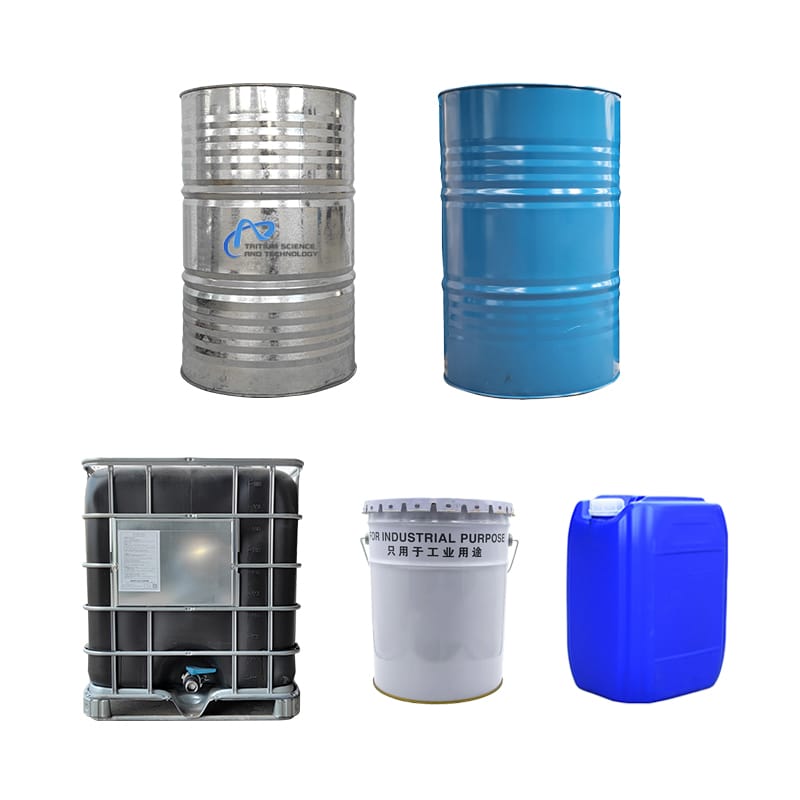

Net weight is 220 kg, metal barrel.Special packaging requirements, please contact us.
