Structures: Orthophthalic Resin, Orthophthalic NPG Resin
Processes:Casting Resin
Application:.Suitable for insulation encapsulation material.

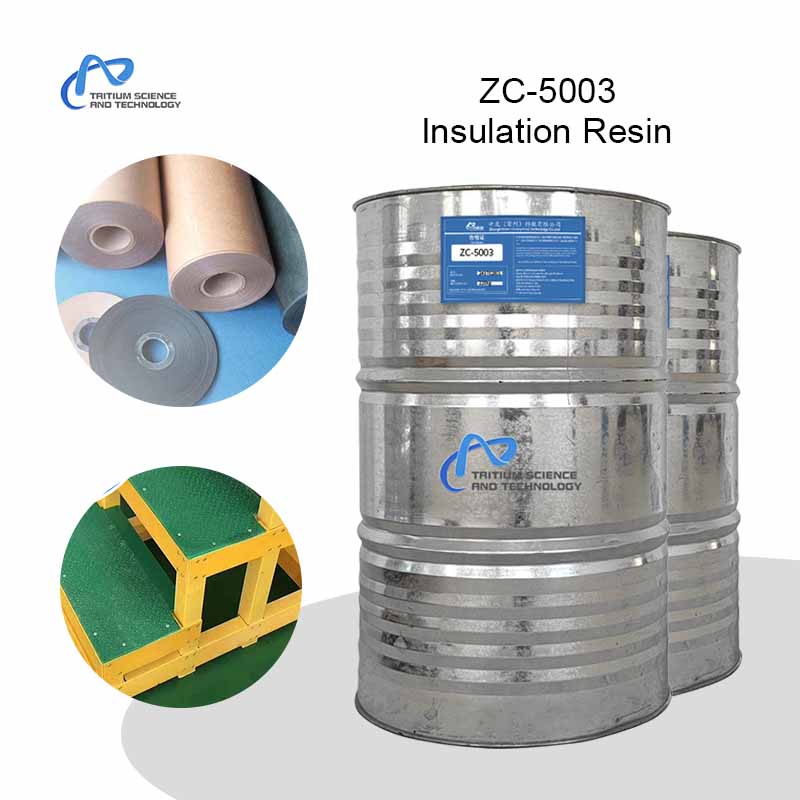

ZC-5003 resin is DCPD with DCPD, maleic anhydride and standard diols as the main raw materials Type A pre-promoted unsaturated polyester resin, soluble in crosslinked monomers such as styrene, has Low viscosity and medium reactivity.

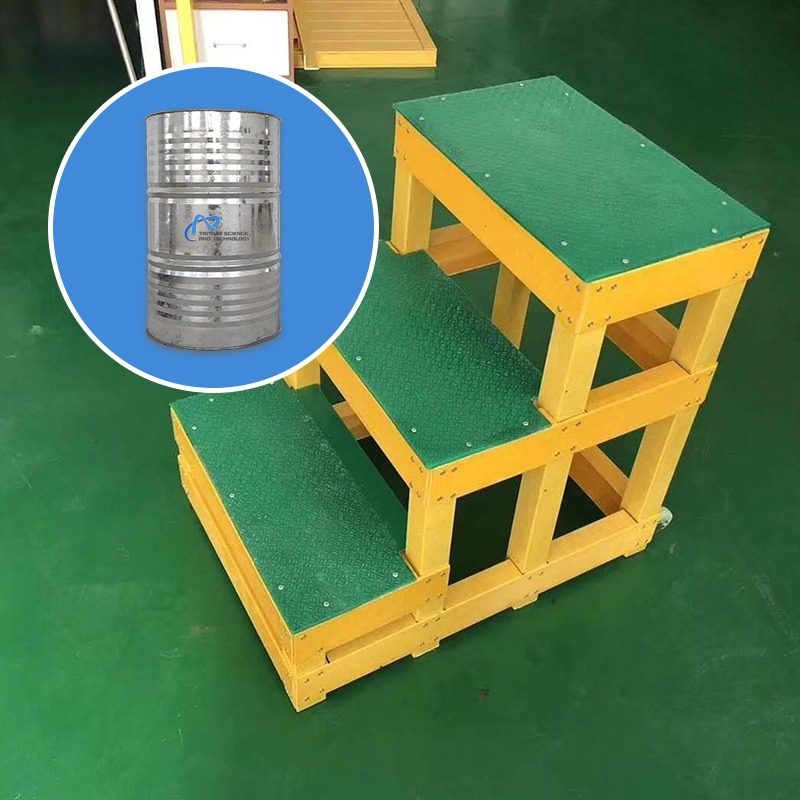

ZC-5003 resin has good air drying, bright surface, good insulation, and good mechanical properties.Suitable for insulation encapsulation material.
| Property | Value | Unit | TM |

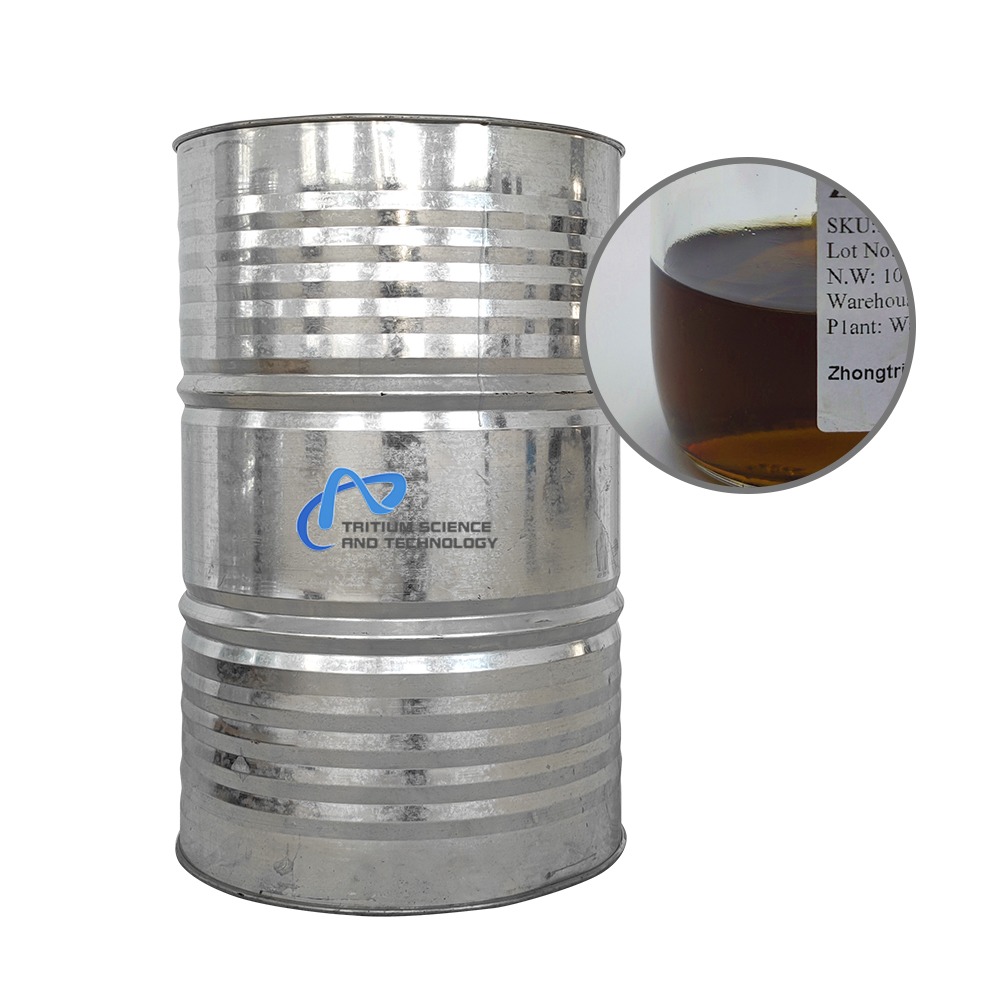

| Appearance | Yellow transparent viscous liquid | – | – |
| Acid Value | 17-23 | mgKOH/g | GB/T 2895-2008 |
| Viscosity，25℃ | 1.4-1.6 | Pa.s | GB/T 7193-2008 |
| Solid Content | 71-75 | % | GB/T 7193-2008 |
| Thermal Stability,80℃ | ≥24 | h | GB/T 7193-2008 |
| Gelation time 25℃ | 10-12 | min | GB/T 7193-2008 |
| Property | Value | Unit | TM |
| Appearance | The casting body is free from defects | – | – |
| Barcol hardness | 45 | – | GB/T 3854-2005 |
| HDT | 110 | ℃ | GB/T 1634-2004 |
| Break Elongation | 1.5 | Mpa | GB/T 2567-2008 |
| Tensile Strength | 45 | Mpa | GB/T 2567-2008 |
| Tensile Modulus | 3100 | Mpa | GB/T 2567-2008 |
| Flexural Strength | 75 | Mpa | GB/T 2567-2008 |
| Flexural Modulus | 3700 | Mpa | GB/T 2567-2008 |
1.ZC-5003 resin contains accelerators, no wax and thixotropic additives.
2.ZC-5003 resin and its products are sensitive to light, easy to gel after seeing light, so in use Avoid opening the package or exposing it to strong light before. The packing of the articles should be Use non-transparent materials to avoid light transmission.

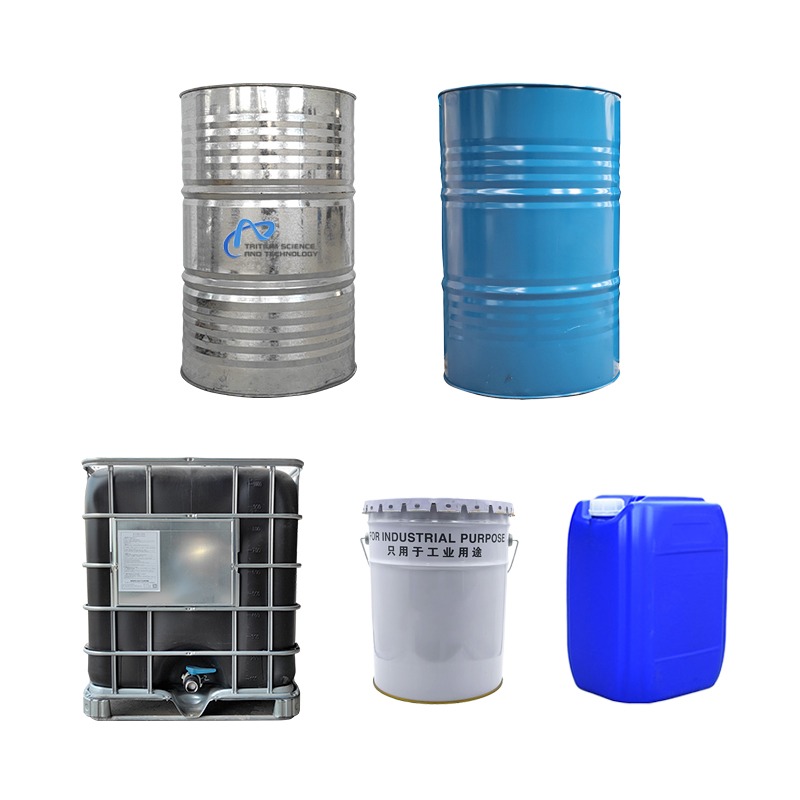

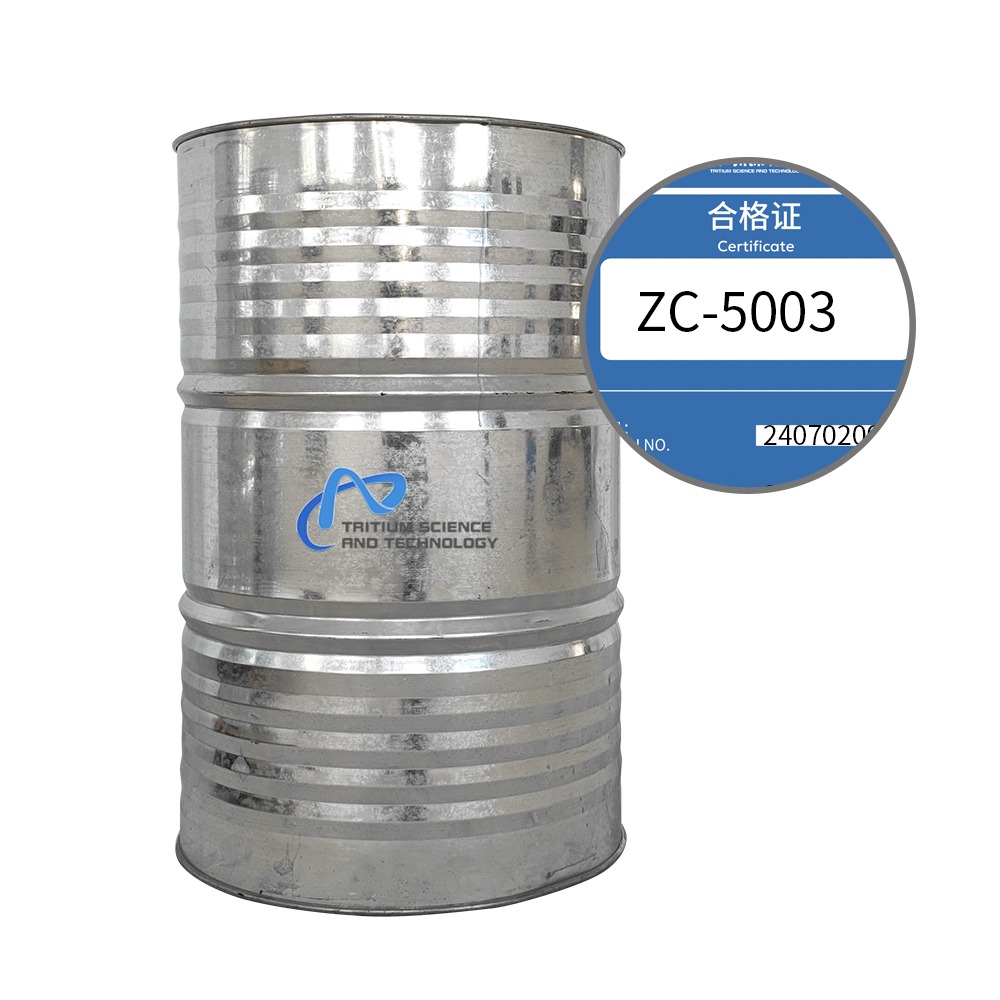

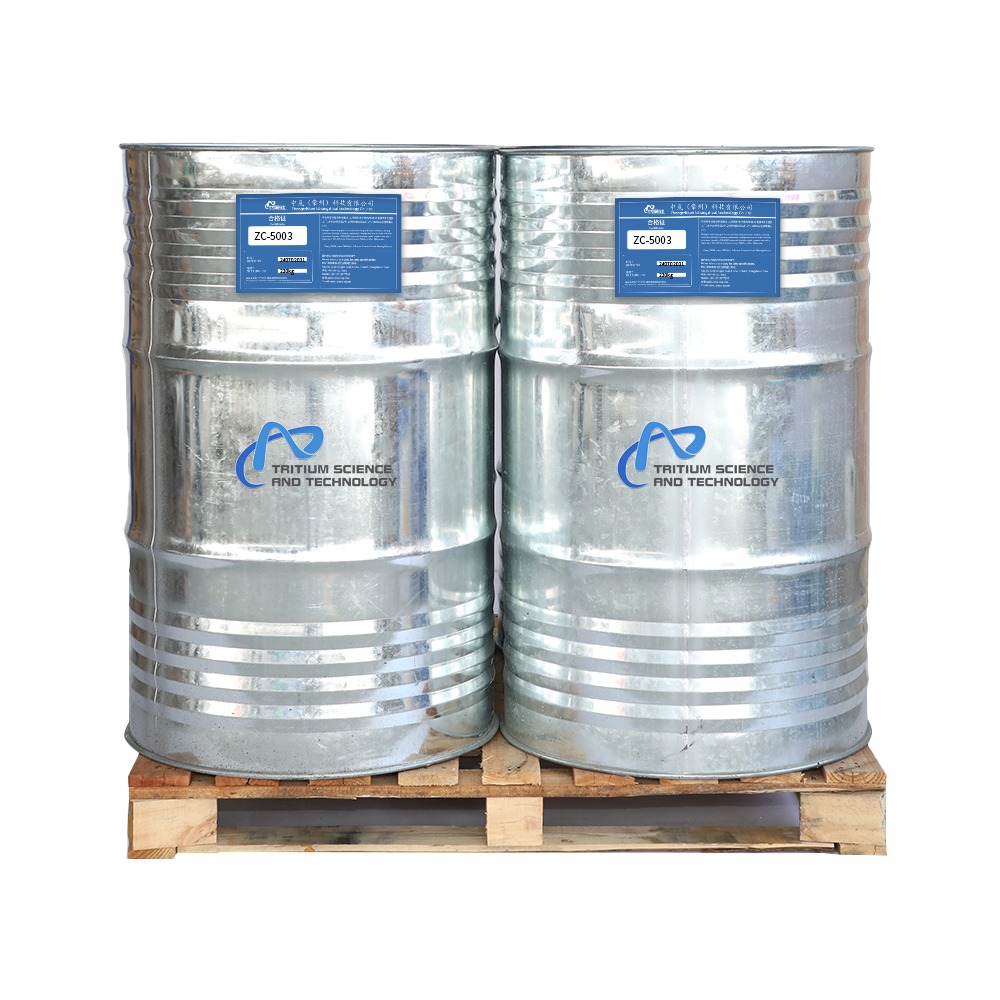

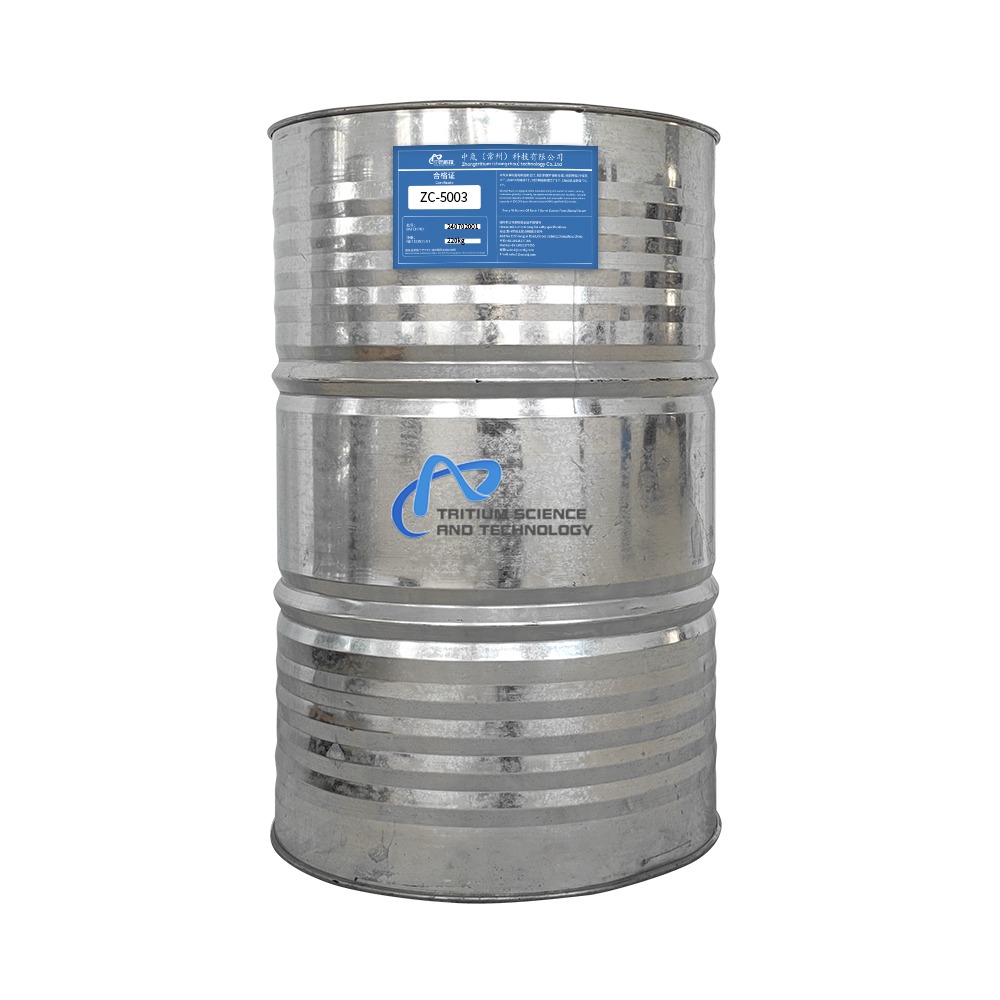

Net weight 220 kg, metal barrel.Please contact us.
