Structures:Orthophthalic
Processes:Casting Resin
Application:It has been dissolved in crosslinking monomers such as styrene and has moderate viscosity and reactivity.
ZC-3397A resin is an MMA modified ortho benzene unsaturated polyester resin mainly made of phthalic anhydride, maleic anhydride, and standard diols. It has been dissolved in crosslinking monomers such as styrene and has moderate viscosity and reactivity.
ZC-3397A resin has a light color, high transparency, fast curing, high strength, and excellent weather resistance. Suitable for casting products such as high-performance solid surface materials, imitation jade sanitary ware, translucent stones, etc.
| Property | Value | Unit | TM |
| Appearance | Yellow transparent viscous liquid | – | – |
| Acid Value | ≤70 | mgKOH/g | GB/T 2895-2008 |
| Viscosity，25℃ | 0.55-0.90 | Pa.s | GB/T 7193-2008 |
| Solid Content | 64-70 | % | GB/T 7193-2008 |
| Thermal Stability,80℃ | ≥24 | h | GB/T 7193-2008 |
| Gel time,25℃ | 4.5-10 | min | GB/T 7193-2008 |
| Property | Value | Unit | TM |
| Appearance | Casting body has no defects | – | – |
| Barcol Hardness | 40 | – | GB/T 3854-2005 |
| HDT | 60 | ℃ | GB/T 1634-2004 |
| Break Elongation | 3.5 | Mpa | GB/T 2567-2008 |
| Tensile Strength | 60 | Mpa | GB/T 2567-2008 |
| Tensile Modulus | 3100 | Mpa | GB/T 2567-2008 |
| Flexural Strength | 110 | Mpa | GB/T 2567-2008 |
| Flexural Modulus | 3200 | Mpa | GB/T 2567-2008 |
1. ZC-3397A resin contains wax, no accelerators, and no thixotropic additives.
2. ZC-3397A resin is suitable for solid surface material single piece molding process, and zc-3397A resin is recommended for continuous molding process; It is recommended to choose zc-7500AL resin with high water resistance, weather resistance requirements, and special-shaped processing.
3. Cutting and polishing during the production process should be carried out after sufficient curing.
4. After curing at 60-70 ° C for no less than 3 hours, the product performance is better.
5. Moisture absorption of fillers should be avoided, as excessive moisture content can affect the curing of the product and lead to a decrease in performance.

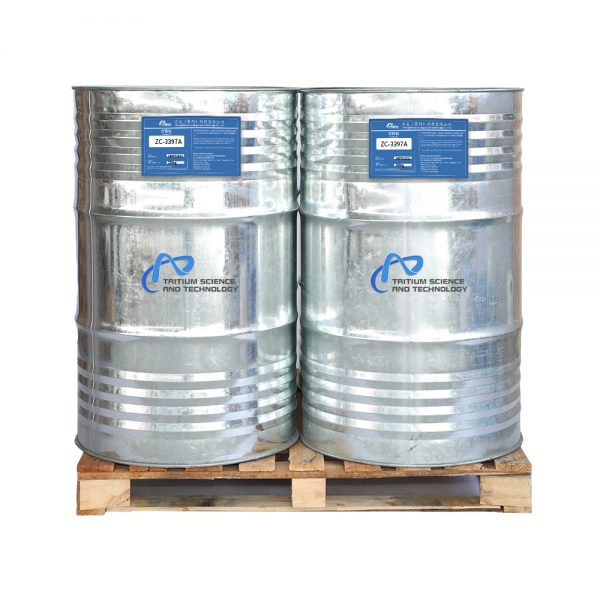

Net weight is 220 kg, metal barrel.Please contact us for special packaging requirements.
