Structures:Orthophthalic
Processes:Hand lay-up
Application:ZC-197 UPR resin is suitable for fiberglass products with higher corrosion resistance requirements.
ZC-197 resin is epoxy resin modificated,bisphenol A type unsaturated polyester resin with D-33 monomer, maleic anhydride, epoxy resin and standard glycol as the main raw materials., which has been dissolved in styrene and cross-linked among monomers, it has medium viscosity and medium reactivity.
ZC-197 resin is a chemically resistant CEE type with excellent corrosion resistance and high mechanical properties. Suitable for fiberglass products with higher corrosion resistance requirements.
| Property | Value | Unit | TM |

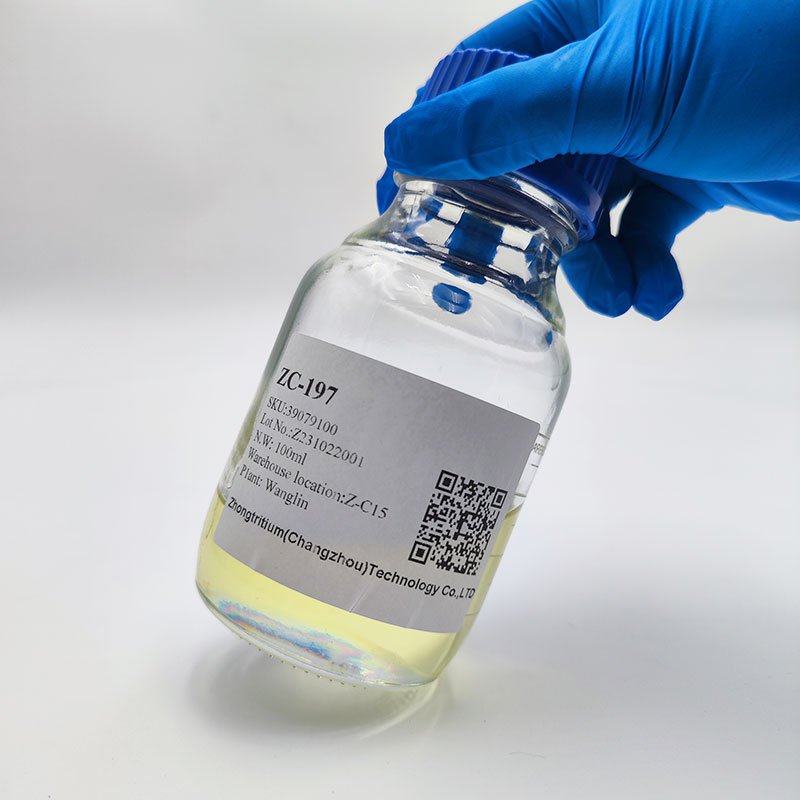

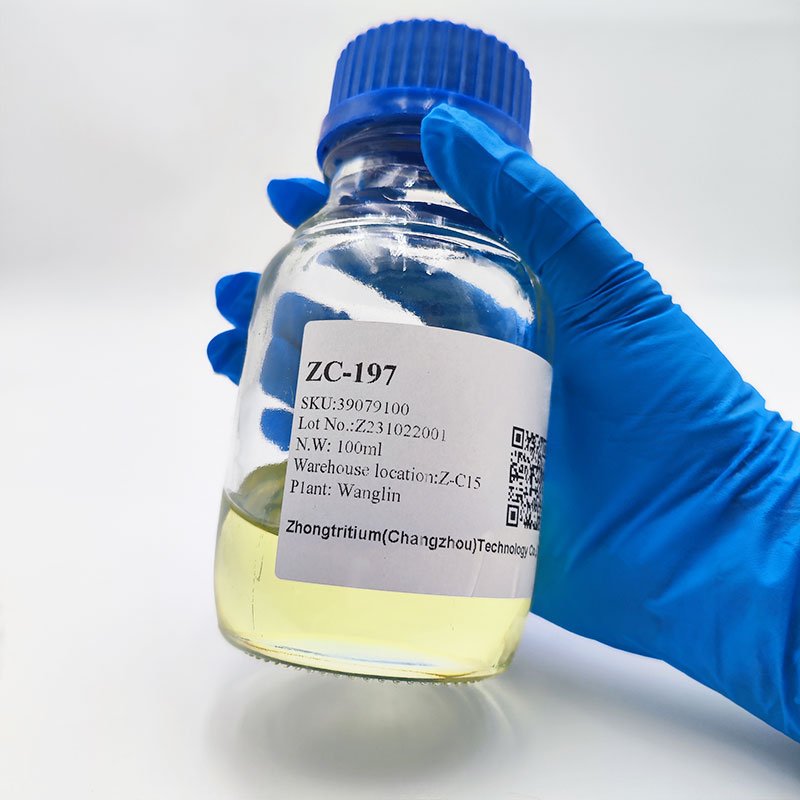

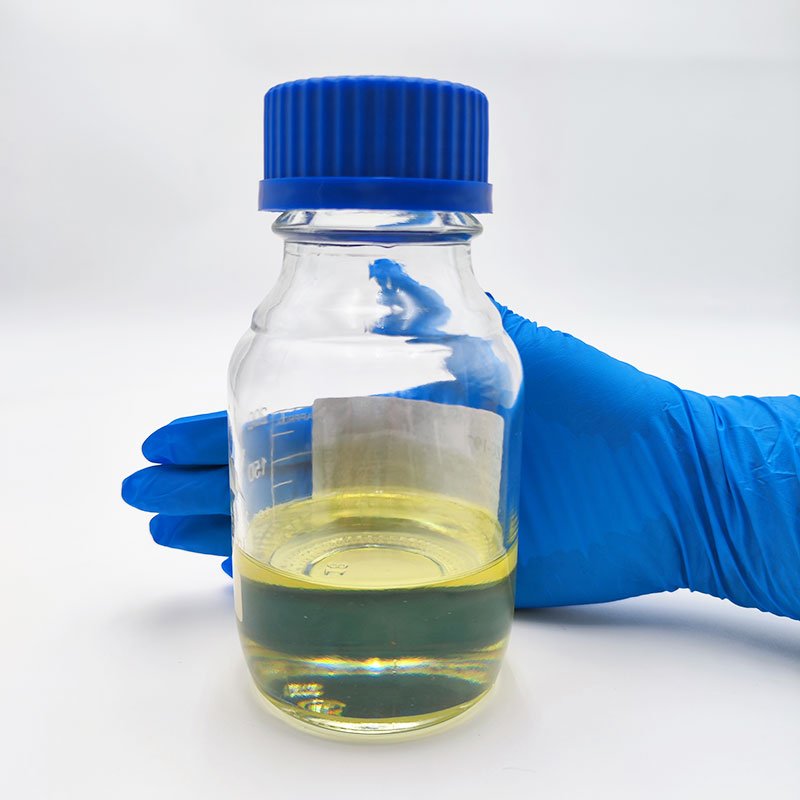

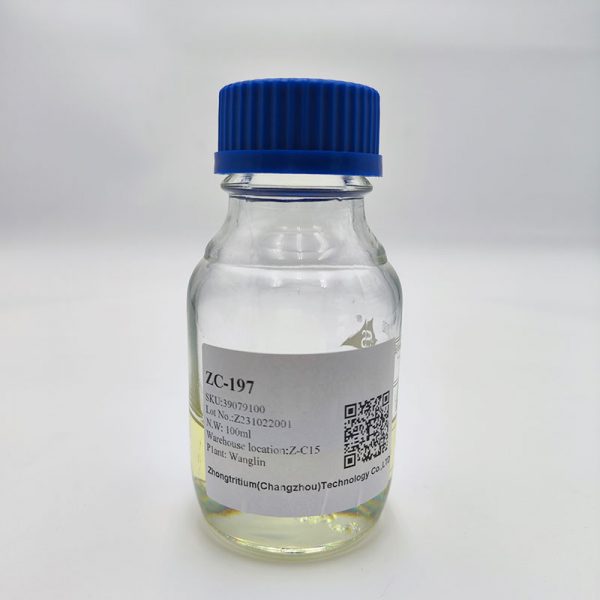

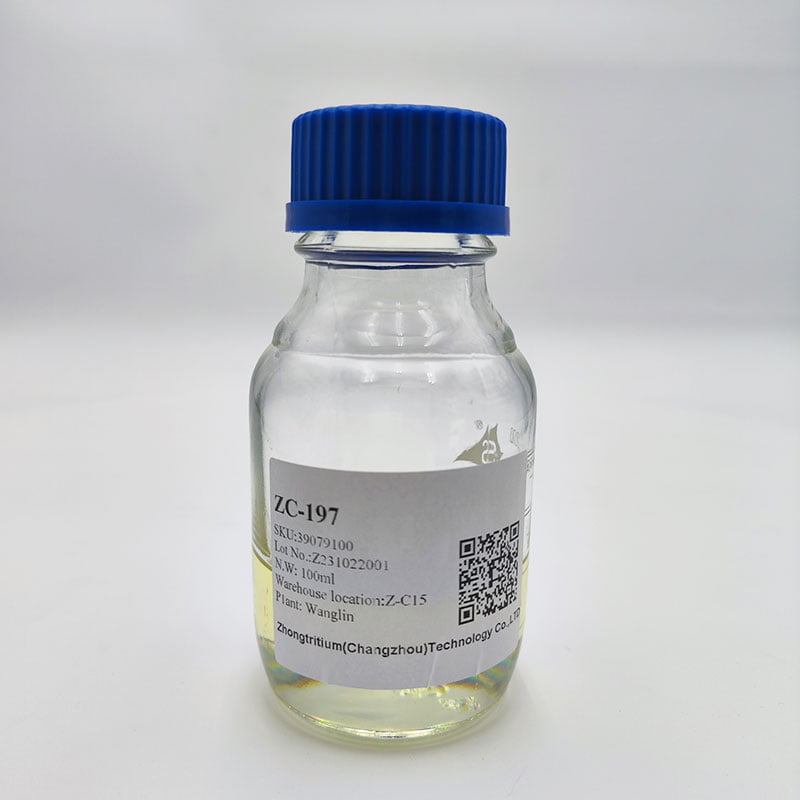

| Appearance | Light yellow transparent viscous liquid | – | – |
| Acid Value | 9-17 | mgKOH/g | GB/T 2895-2008 |
| Viscosity，25℃ | 0.40-0.50 | Pa.s | GB/T 7193-2008 |
| Solid Content | 47-53 | % | GB/T 7193-2008 |
| Thermal Stability,80℃ | ≥24 | h | GB/T 7193-2008 |
| Gelation time,25℃ | 10-13 | min | GB/T 7193-2008 |
| Property | Value | Unit | TM |
| Appearance | Cast body without defects | – | – |
| Barcol hardness | 45 | – | GB/T 3854-2005 |
| HDT | 115 | ℃ | GB/T 1634-2004 |
| Break Elongation | 2 | % | GB/T 2567-2008 |
| Tensile Strength | 60 | Mpa | GB/T 2567-2008 |
| Tensile Modulus | 3100 | Mpa | GB/T 2567-2008 |
| Flexural Strength | 90 | Mpa | GB/T 2567-2008 |
| Flexural Modulus | 3300 | Mpa | GB/T 2567-2008 |
| Property | Value | Unit | TM |
| Barcol Hardness | 65 | – | GB/T 3584-2005 |
| Flexural Strength | 330 | Mpa | GB/T 1449-2005 |
| Flexural Modulus | 17000 | Mpa | GB/T 1449-2005 |
| Tensile Strength | 320 | Mpa | GB/T 1447-2005 |
| Tensile Modulus | 16000 | Mpa | GB/T 1447-2005 |
1. ZC-197 resin does not contain wax, accelerators and thixotropic additives.
2. When selecting heat-resistant and chemical-resistant anti-corrosion resin, the appropriate resin should be selected based on the actual medium and temperature of the product, and the company’s “Heat-resistant and chemical-resistant medium usage inquiry form” and confirmed through testing.
3. Post-curing of corrosion-resistant FRP products is particularly important, and the products should be used after they are fully cured.
ZC-197 Resin packaging: net weight 200 kg, metal drum.
Special packaging requirements please Negotiable
