Structures:Bisphenol A
Processes:Filament Winding Resin，Hand lay-up Resin，Vacuum Infusion/RTM Resin

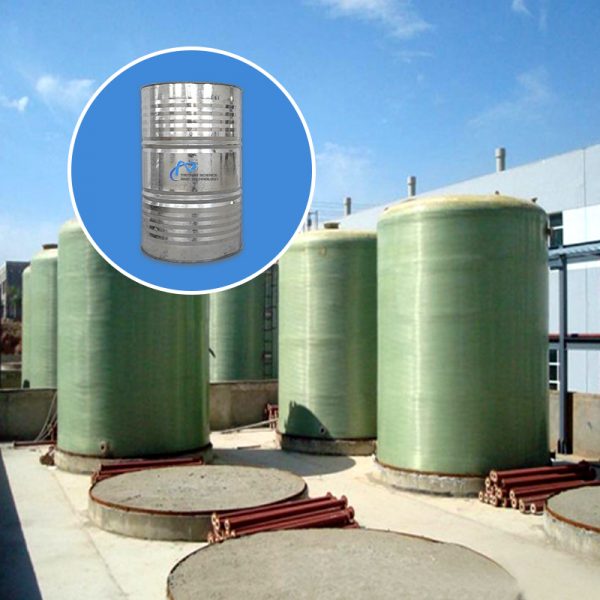

Application: It is suitable for corrosion-resistant fiberglass pipes, containers, storage tanks and other products with high corrosion resistance requirements.
ZC-1033 resin is a bisphenol A type unsaturated polyester resin with D-33 monomer, maleic anhydride and standard diol as main raw materials. It has been dissolved in styrene cross-linking monomer and has medium viscosity and high reactivity.
ZC-1033 resin is a chemical resistant CEE type with good corrosion resistance, high mechanical properties and heat deformation temperature. It is suitable for corrosion-resistant fiberglass pipes, containers, storage tanks and other products with high corrosion resistance requirements.
| Property | Value | Unit | TM |
| Appearance | Yellow transparent viscous liquid | – | – |
| Acid Value | 12-19 | mgKOH/g | GB/T 2895-2008 |
| Viscosity，25℃ | 0.40-0.50 | Pa.s | GB/T 7193-2008 |
| Solid Content | 57-63 | % | GB/T 7193-2008 |
| Thermal Stability,80℃ | ≥24 | h | GB/T 7193-2008 |
| Gelation time 25℃ | 10-25 | min | GB/T 7193-2008 |
| Property | Value | Unit | TM |
| Appearance | Casting body has no defects | – | – |
| Barcol hardness | 45 | – | GB/T 3854-2005 |
| HDT | 115 | ℃ | GB/T 1634-2004 |
| Break Elongation | 2 | Mpa | GB/T 2567-2008 |
| Tensile Strength | 60 | Mpa | GB/T 2567-2008 |
| Tensile Modulus | 3500 | Mpa | GB/T 2567-2008 |
| Flexural Strength | 100 | Mpa | GB/T 2567-2008 |
| Flexural Modulus | 3600 | Mpa | GB/T 2567-2008 |
1. ZC-1033 resin does not contain wax, accelerator or thixotropic agent.
2. When selecting heat-resistant and chemical-resistant anticorrosive resin, the actual use medium and temperature of the product should be selected according to the company’s “Heat-resistant and Chemical-resistant Medium Use Inquiry Table” to select the appropriate resin and confirm it through testing.
3. Post-curing of corrosion-resistant FRP products is particularly important, and the products should be used after they are fully cured.

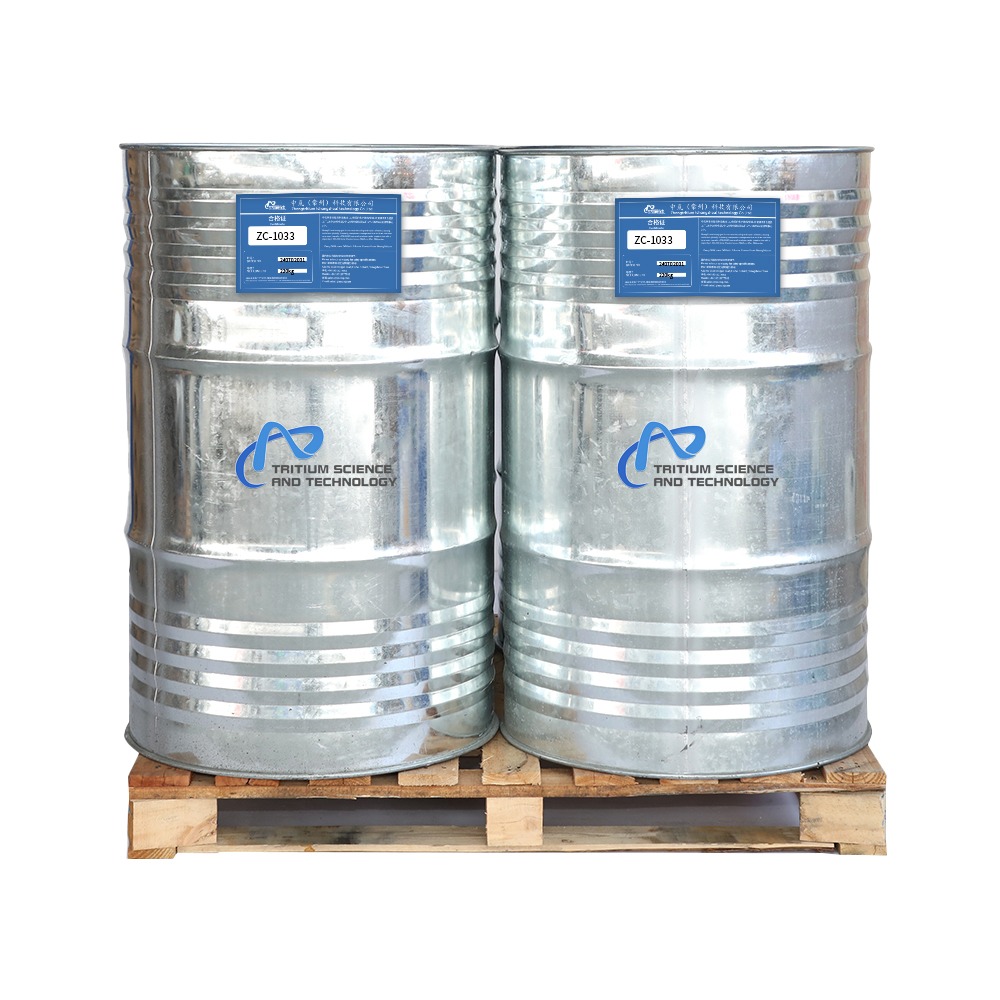

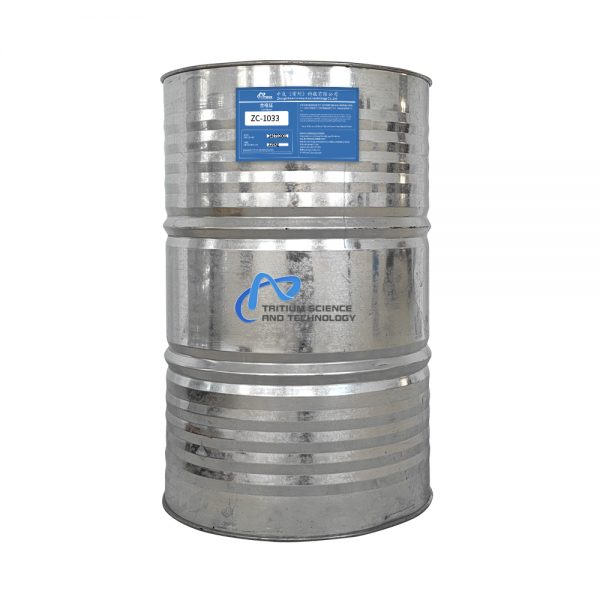

Net weight 220 kilograms, metal drum.Please contact us.
